Circuit Diagram: (A/T)

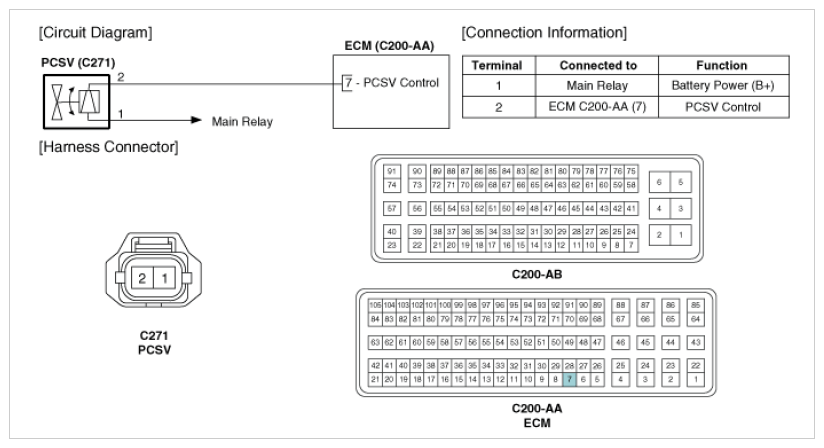

Fig 1: Purge Control Solenoid Valve Circuit Diagram (A/T)

G09779315

Courtesy of KIA MOTORS AMERICA, INC.
