Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Install the drive belt (A).

Fig 1: Engine Drive Belt Routing Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Adjust tension by tightening the alternator tension adjust bolt (B) and then install the mounting bolts (A).
Tightening torque

12mm (0.47in) bolt:

19.6 ~ 26.5 N.m (2.0 ~ 2.7 kgf.m, 14.5 ~ 19.5 lb-ft)

14mm (0.55in) bolt:

29.4 ~ 41.2 N.m (3.0 ~ 4.2 kgf.m, 21.7 ~ 30.4 lb-ft)

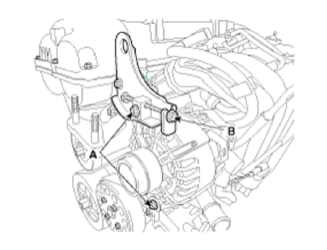

Fig 2: Alternator Tension Adjust Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Connect the battery negative terminal.
