Repair Procedures: Inspection

WARNING: This page is about a different car, the 2016 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

The SJB can be diagnosed by using the GDS. The SJB communicates with the GDS which then displays inputs and outputs along with codes.
It will be able to quickly diagnose defects of hazard lamp switch with GDS. GDS can forcefully operate actuator, monitor input/output values and self diagnose.
To diagnose the SJB function, select the vehicle model, BCM and SJB.

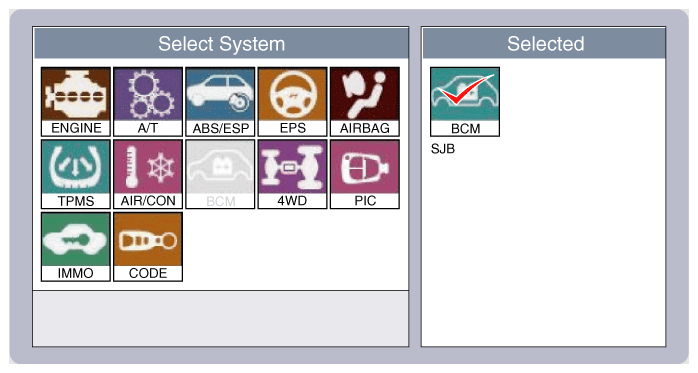

Fig 1: Scantool Display - SJB Function
Courtesy of KIA MOTORS AMERICA, INC.
To consult the present input/output values of SJB, select "Current DATA" to view current information of SJB input/output conditions.

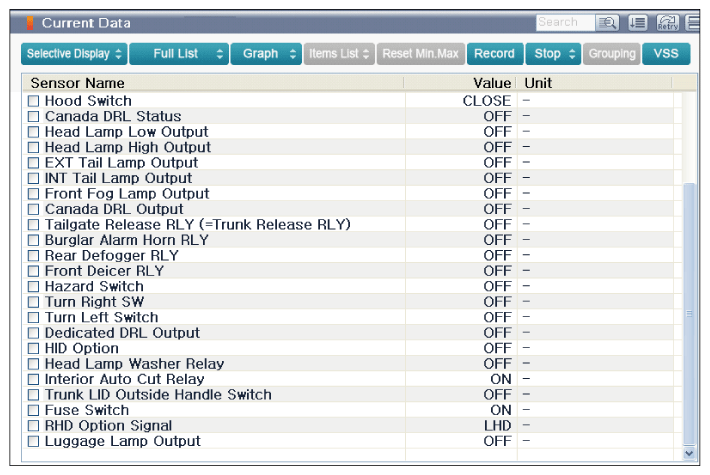

Fig 2: Scantool Display - Current Data
Courtesy of KIA MOTORS AMERICA, INC.
