Repair Procedures: Removal

Release the residual pressure in fuel line (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").
Remove the rear seat.
(Refer to "REAR SEAT ASSEMBLY ")
Remove the fuel pump service cover (A).

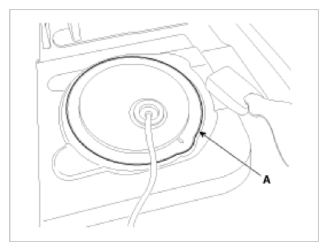

Fig 1: Identifying Fuel Pump Service Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).
Disconnect the fuel feed tube quick connector (C) and the vapor tube quick-connector (D).
Remove the plate cover (E) after removing the mounting bolts.

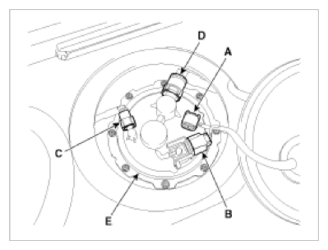

Fig 2: Identifying Fuel Pump, Fuel Tank Pressure Sensor, Fuel Feed Tube Quick And Vapor Tube Quick-Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel pump from the fuel tank.

Fig 3: Identifying Fuel Pump Plate Cover And Fuel Pump Assembly
Courtesy of KIA MOTORS AMERICA, INC.
