Repair Procedures: Removal

Remove the fuel pump.
(Refer to "FUEL PUMP ")
Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

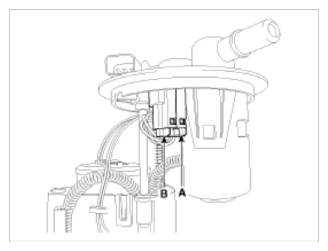

Fig 1: Identifying Electric Pump Wiring And Fuel Sender Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the head assembly (A) after releasing the cushion fixing clip (B).

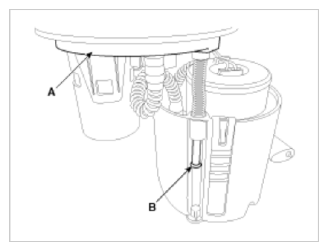

Fig 2: Identifying Head Assembly And Cushion Fixing Clip
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel tube connector (A).

Fig 3: Identifying Fuel Tube Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the reservior-cup (B) after releasing the fixing hooks (A).

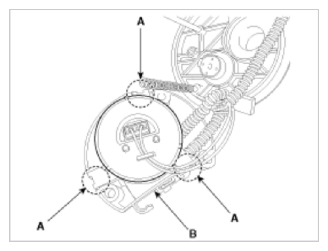

Fig 4: Identifying Reservoir-Cup And Fixing Hooks
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel tube quick-connector (A).
Release the fixing hooks, and then remove the pre-filter (B).

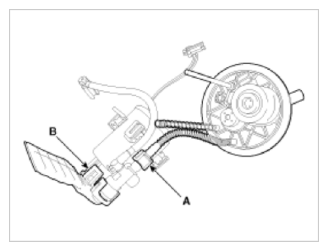

Fig 5: Identifying Reservoir-Cup And Fixing Hooks
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel pressure regulator (A).

Fig 6: Removing Fuel Pressure Regulator
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful of O-ring
