Repair Procedures: Removal

Disconnect the battery negative (-) terminal.
Remove the engine room under cover.
(Refer to "ENGINE ROOM UNDER COVER ")
Remove the battery (+) cable bracket (A) by loosening the mounting bolt (B)
Disconnect the oil pressure switch connector (C).

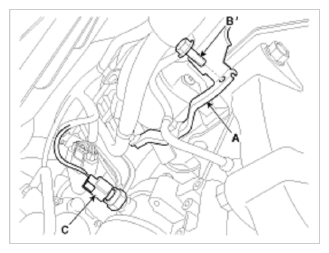

Fig 1: Identifying Battery Cable Bracket, Mounting Bolt And Oil Pressure Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the starter cable (B) from B terminal on the solenoid and then disconnect the connector from the S terminal (B).

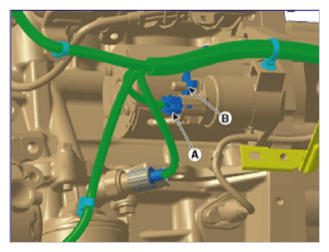

Fig 2: Identifying Starter Cable And S Terminal
Courtesy of KIA MOTORS AMERICA, INC.
Remove the starter (A) by loosening the 2 bolts holding the starter.

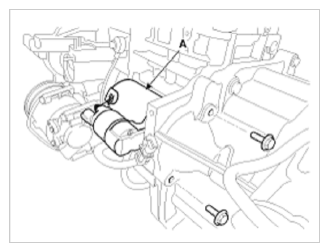

Fig 3: Identifying Starter
Courtesy of KIA MOTORS AMERICA, INC.
