Repair Procedures: Installation

  1. Install is the reverse of the removal.
    NOTE:
    • Must be replaced with new O ring (A, B) when installing.

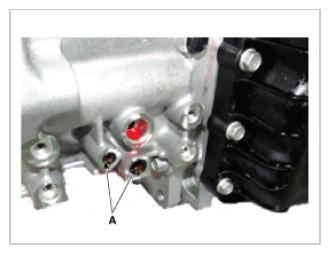

    Fig 1: Identifying O Rings (1 Of 2)
    G09779380Courtesy of KIA MOTORS AMERICA, INC.

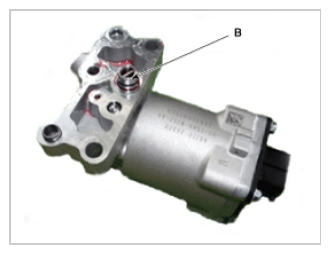

    Fig 2: Identifying O Rings (2 Of 2)
    G09779381Courtesy of KIA MOTORS AMERICA, INC.
    • Adding automatic transaxle fluid.

      (Refer to FLUID )
