Components Location

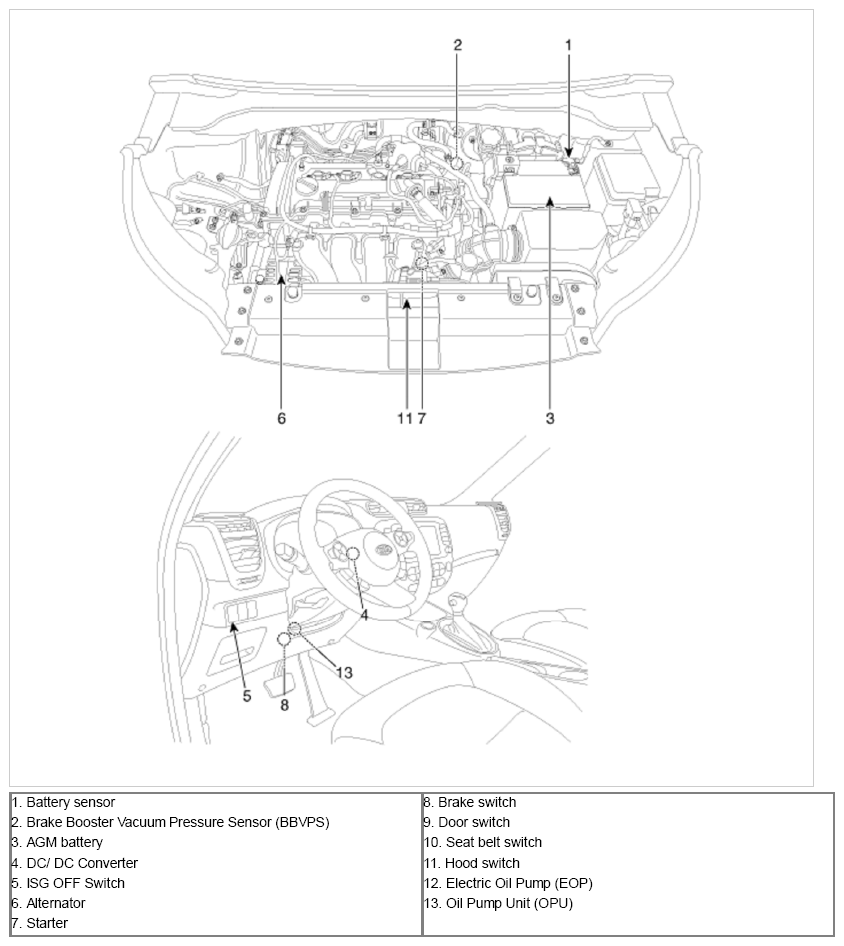

Fig 1: ISG System Components Location
G09779341Courtesy of KIA MOTORS AMERICA, INC.

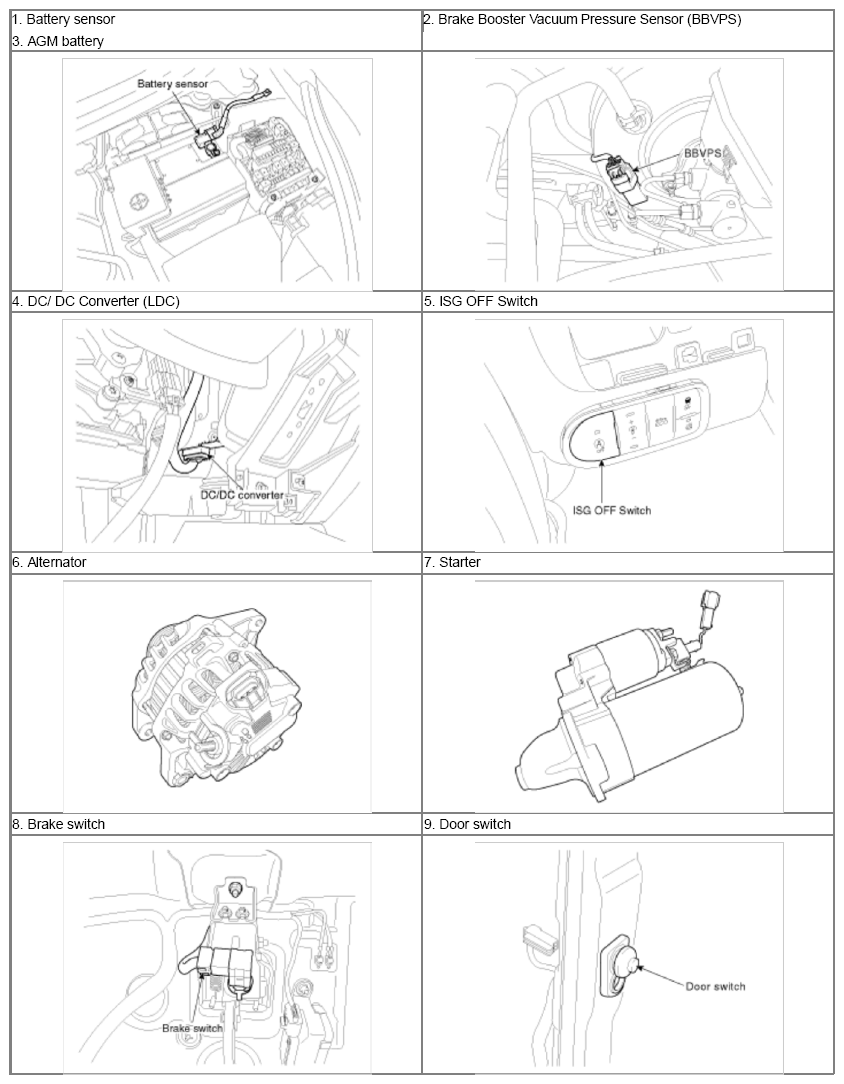

Fig 2: Identifying ISG System Components (1 Of 2)
G09779342Courtesy of KIA MOTORS AMERICA, INC.

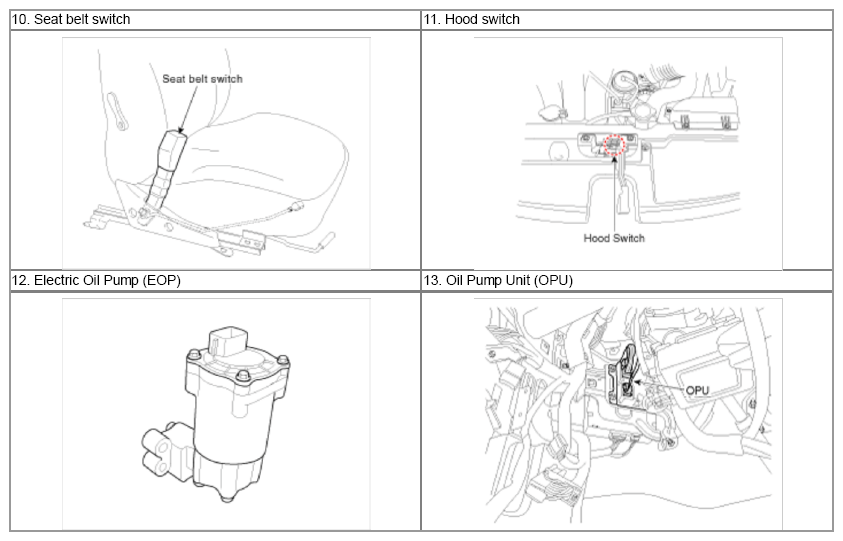

Fig 3: Identifying ISG System Components (2 Of 2)
G09779343Courtesy of KIA MOTORS AMERICA, INC.
