Circuit Diagram: (A/T)

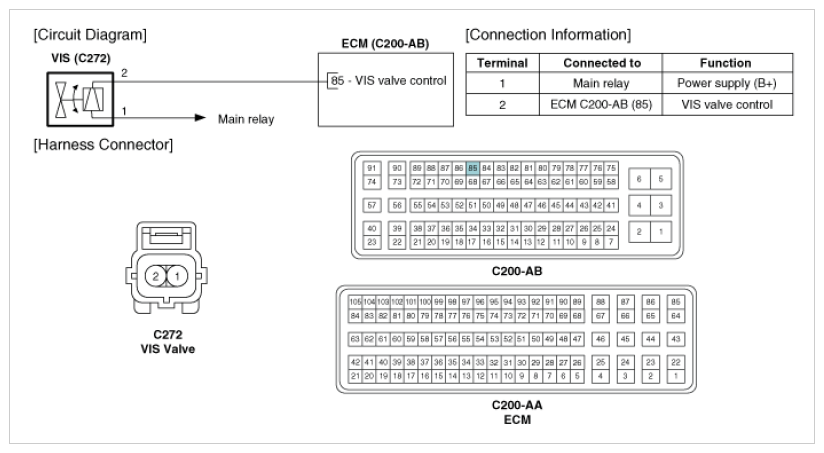

Fig 1: Variable Intake Solenoid (VIS) Valve Circuit Diagram (A/T)

G09779326

Courtesy of KIA MOTORS AMERICA, INC.
