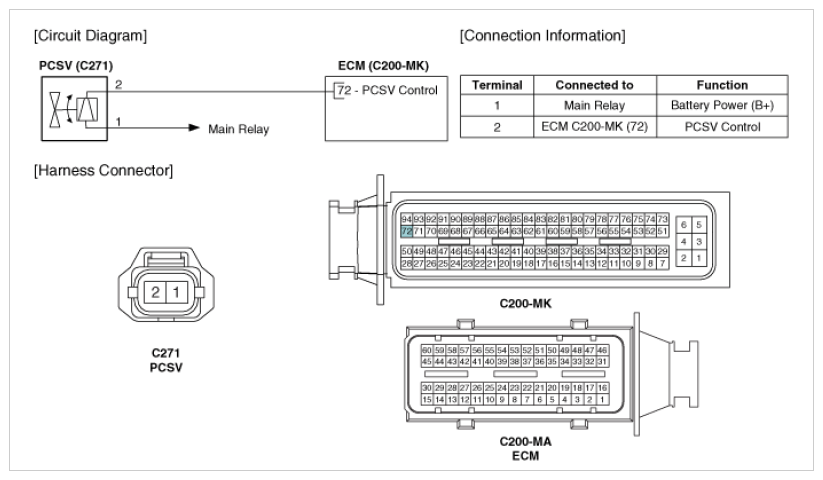

Home >> Kia >> 2015 >> Soul ! >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Purge Control Solenoid Valve (PCSV) >> Schematic Diagrams >> Circuit Diagram >> (M/T)
