A/C Control Module (Manual A/C) Connector End View (M07-B)

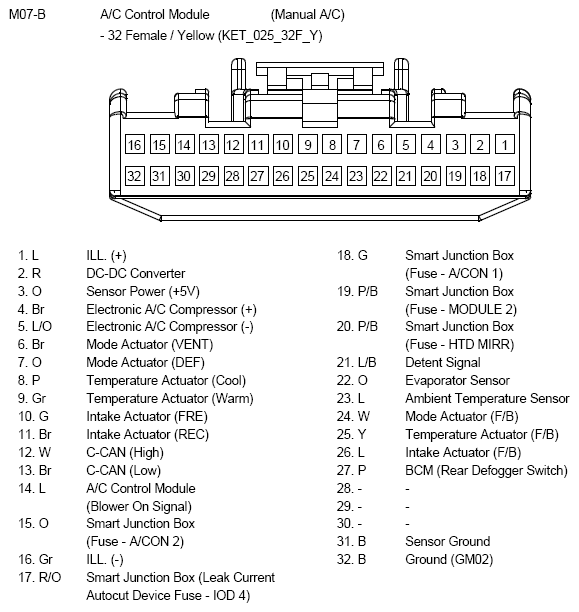

Fig 1: A/C Control Module (Manual A/C) Connector End View (M07-B)

G10793718

Courtesy of KIA MOTORS AMERICA, INC.
