Terminal And Connector Inspection

  1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
  2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
  3. Has a problem been found?

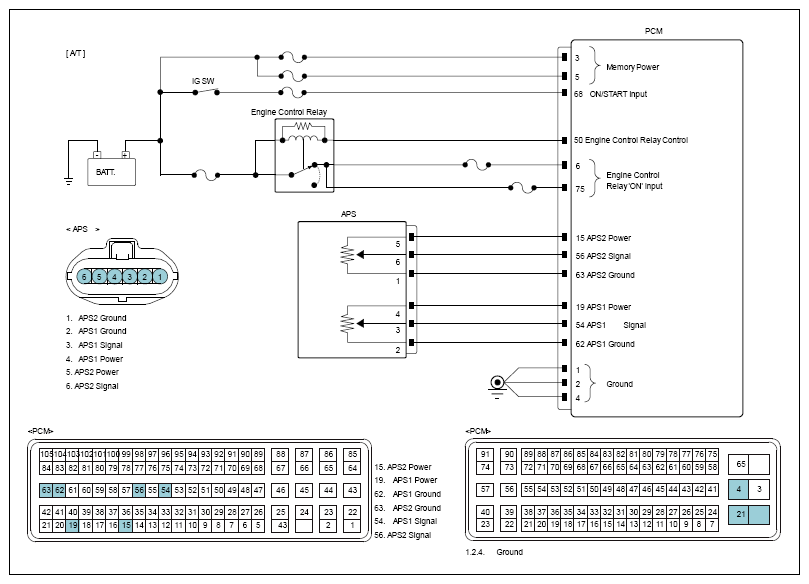

    Fig 1: Accelerator Position Sensor 2 - Circuit Diagram (A/T)
    G09781546Courtesy of KIA MOTORS AMERICA, INC.

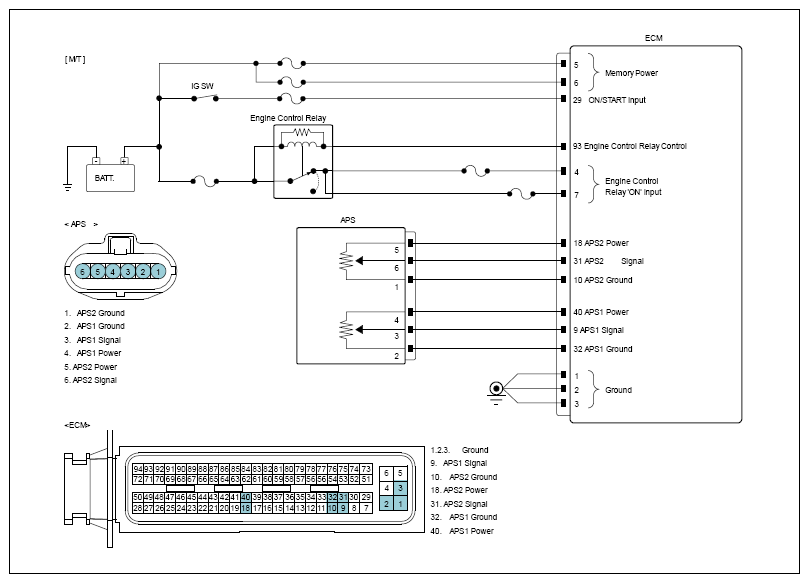

    Fig 2: Accelerator Position Sensor 2 - Circuit Diagram (M/T)
    G09781547Courtesy of KIA MOTORS AMERICA, INC.

    YES

    NO
