Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis (1 Of 2) - 2.0L
>>
DTC P0090: Fuel Pressure Regulator 1 Control Circuit/Open
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

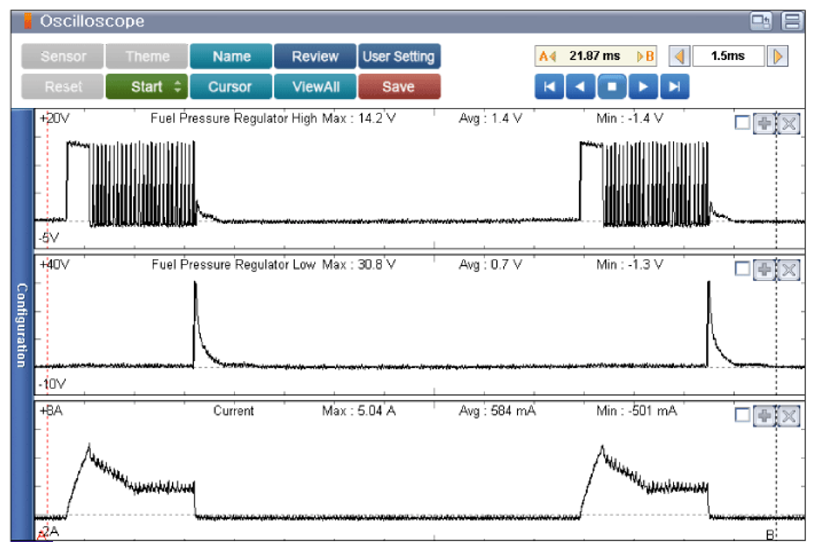

Fig 1: Display - Fuel Pressure Regulator Waveform Screen (Engine Idle After Warm Up)
Courtesy of KIA MOTORS AMERICA, INC.

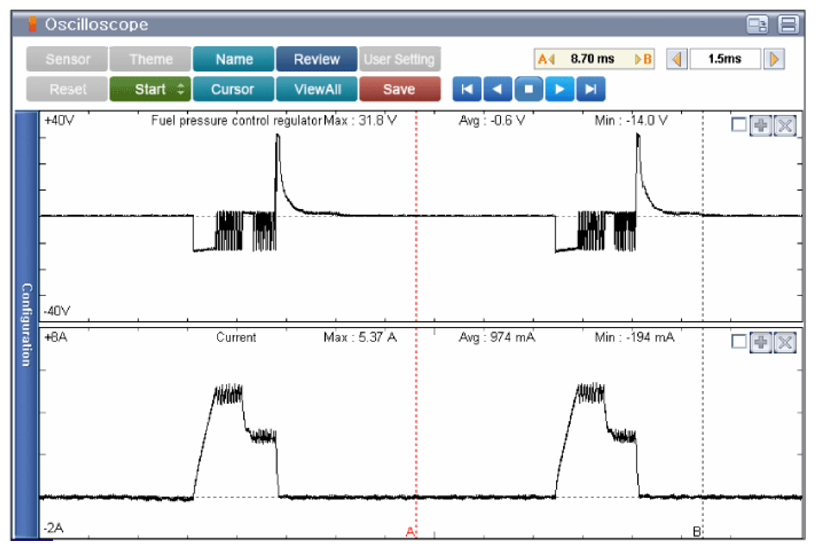

Fig 2: Display - Fuel Pressure Regulator Waveform Screen (Approx. 2000rpm)
Courtesy of KIA MOTORS AMERICA, INC.

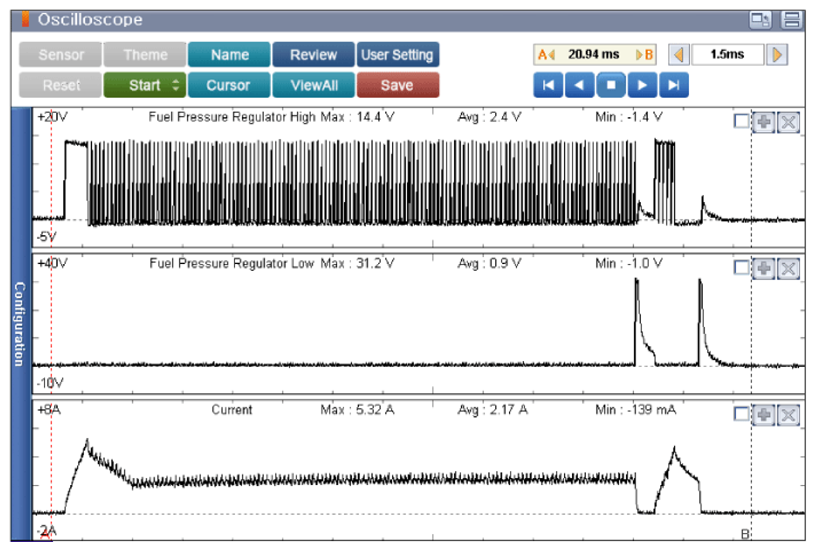

Fig 3: Display - Fuel Pressure Regulator Waveform Screen (Approx. 3000rpm)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
