Signal Waveform & Data

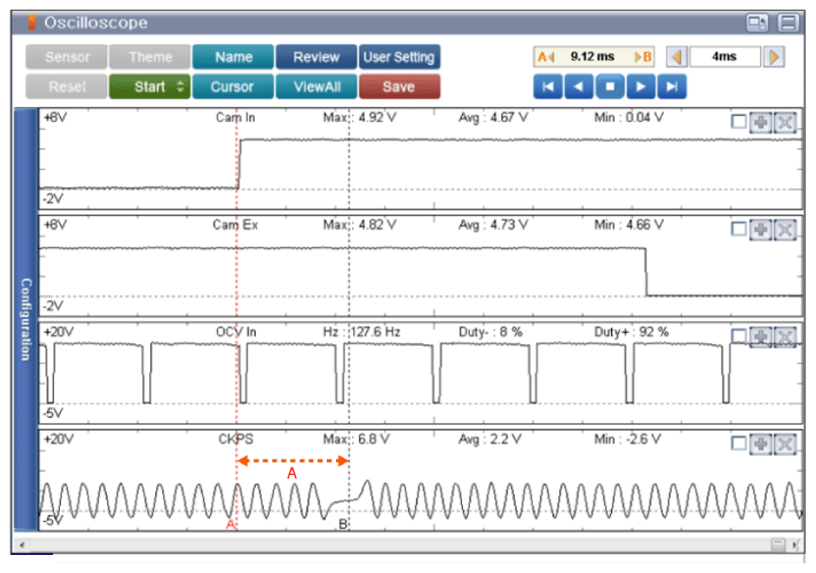

Fig 1: Display - Normal Waveforms Of OCV-In, CKPS, CMPS (IN, EX) At Engine Idle Screen
G09780530Courtesy of KIA MOTORS AMERICA, INC.

A: CKPS & CMPS (Intake side) synchronization - There are about 4~5 teeth between the CKPS missing tooth and CMPS signal.
