Section 20 (Automatic Transaxle Control System - A6MF2)
>>
Output Speed Sensor
>>
Troubleshooting
>>
Signal Waveform
Signal Waveform
WARNING:
This page is about a different variant/trim than selected.

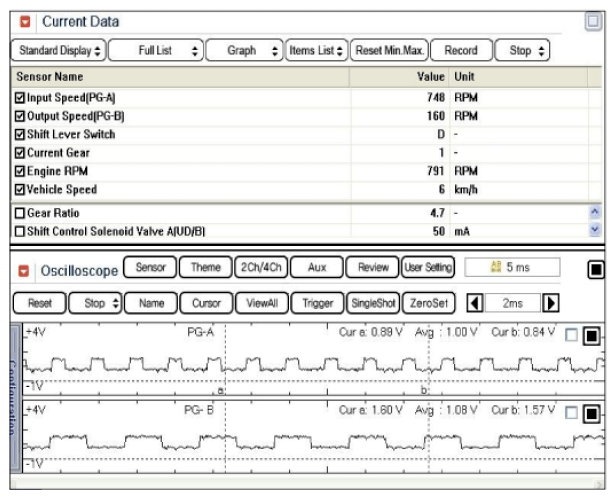

Fig 1: Display - Output Speed Sensor Signal Waveform Screen (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

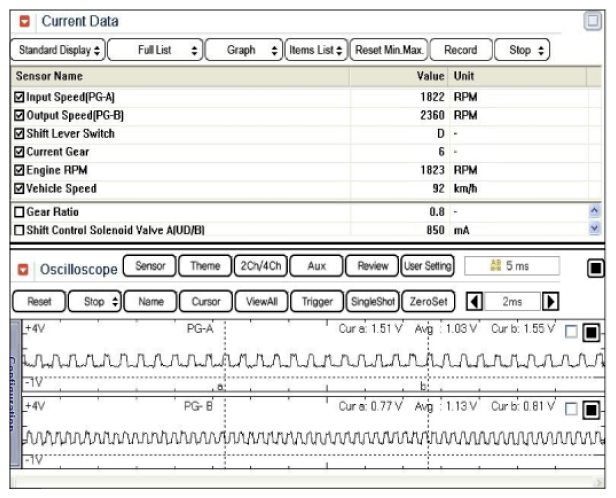

Fig 2: Display - Output Speed Sensor Signal Waveform Screen (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
