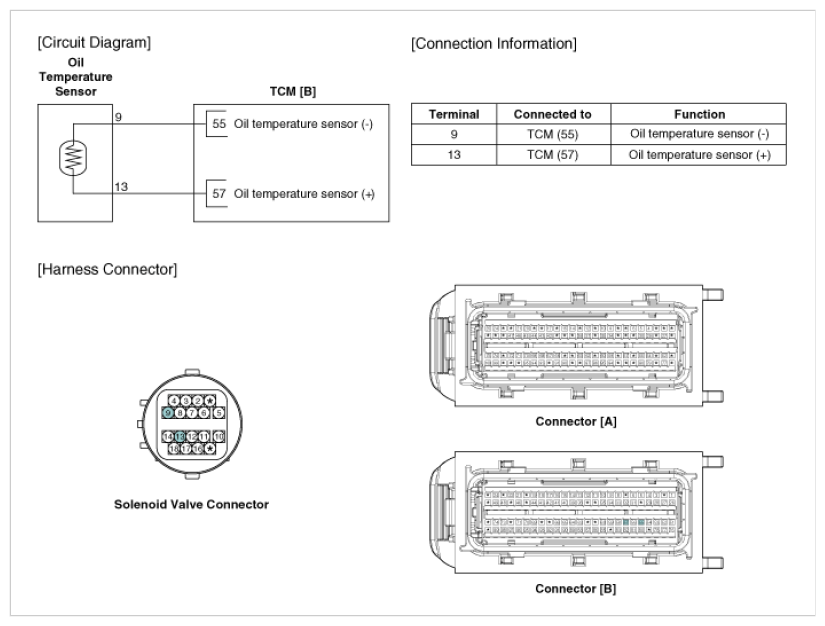

Home >> Kia >> 2015 >> Sorento EX, FWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - A6LF2 >> Transaxle Oil Temperature Sensor >> Schematic Diagrams >> Circuit Diagram
