Repair Procedures: Removal

  1. Remove the negative (-) battery terminal.
  2. Remove the front seat assembly.

    (Refer to "FRONT SEAT ")

  3. Remove the IMS module (B) after disconnecting the connector (A) and loosening the screws (3EA).

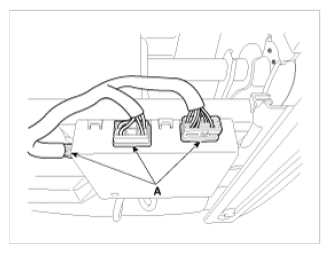

    Fig 1: IMS Module Connectors
    G09767000Courtesy of KIA MOTORS AMERICA, INC.

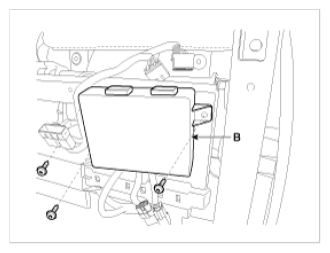

    Fig 2: IMS Module
    G09767001Courtesy of KIA MOTORS AMERICA, INC.
