Interior 3 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. After loosening the mounting bolts, then remove the third seat assembly (A).

    (Refer to "REAR SEAT ")

  3. After loosening the antenna nuts (2EA) and connector (A), remove the interior 3 antenna (B).

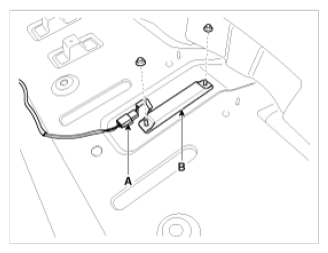

    Fig 1: Interior 3 Antenna
    G09766903Courtesy of KIA MOTORS AMERICA, INC.
