Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. After loosening the mounting screws, then remove the tailgate side trim (A).

    (Refer to the "TAILGATE TRIM REPLACEMENT ")

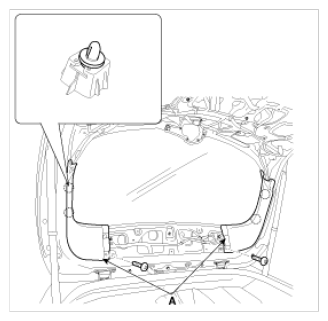

    Fig 1: Tailgate Side Trim
    G09767208Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the anti-pinch strip sensor connector.
  4. Remove the anti-pinch strip (A) after removing the clips (5EA).
    Fig 2: Anti-Pinch Strip
    G09767209Courtesy of KIA MOTORS AMERICA, INC.
