Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to "FRONT DOOR ")

  3. Remove the IMS switch (A) after disconnecting the connector (B).

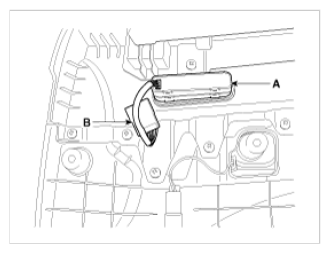

    Fig 1: IMS Switch And Connector
    G09767009Courtesy of KIA MOTORS AMERICA, INC.
