Repair Procedures: Inspection

  1. Disconnect the IMS control switch connector.

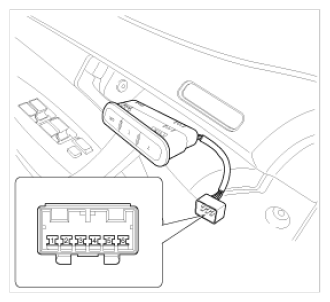

    Fig 1: IMS Control Switch Connector
    G09767010Courtesy of KIA MOTORS AMERICA, INC.
  2. With the power IMS control switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the IMS control switch.
    Fig 2: IMS Control Switch Connector Terminals Continuity Chart
    G09767011Courtesy of KIA MOTORS AMERICA, INC.
