Repair Procedures: Inspection

Information

• Transfer oil should be inspected and refilled every 60000 km (40000 mile)/4 year.

1. Remove the under cover.

   (Refer to "ENGINE ROOM UNDER COVER for 2.4L or ENGINE ROOM UNDER COVER for 3.3L")

2. Remove the oil filler plug (A).

   [Gasoline 2.4]

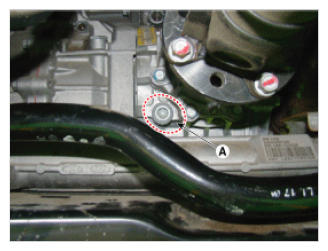

   Fig 1: Oil Filler Plug (Gasoline 2.4)

   Courtesy of KIA MOTORS AMERICA, INC.

   [Gasoline 3.3]

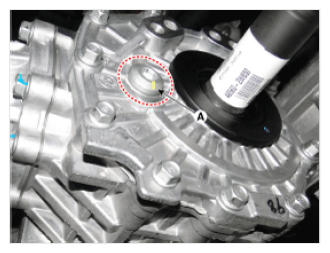

   Fig 2: Oil Filler Plug (Gasoline 3.3)

   Courtesy of KIA MOTORS AMERICA, INC.
3. Check the oil level.

   Information

   Oil level must be up to fill the hole, if not, add oil until it runs over.

   Fig 3: Oil Level

   Courtesy of KIA MOTORS AMERICA, INC.
4. Install the oil filler plug with new gasket.

   Tightening torque:  39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)

5. Install the under cover.

   (Refer to "ENGINE ROOM UNDER COVER for 2.4L or ENGINE ROOM UNDER COVER for 3.3L")
