Repair Procedures: Installation

Install in the reverse order of removal.
CAUTION: If the oil seal on the transaxle case side is damaged and fluid is leaking, replace the oil seal with a new unit.
When installing the new oil seal, use the specialized tool.

2WD both side: 09453-3L240

4WD transaxle case side: 09453-3L240

4WD transaxle housing side: 09453-2W100
NOTE:
After replacement or reinstallation procedure of the automatic transaxle assembly, must perform procedures below.
- Adding automatic transaxle fluid.
  (Refer to FLUID )
- Adding coolant.
  (Refer to "COOLANT for 2.4L or COOLANT for 3.3L")
- After replacing the automatic transaxle, clear the Diagnostic Trouble Code (DTC) using the GDS tool. DTC cannot be cleared by disconnecting the battery.
- When replacing the automatic transaxle, reset the automatic transaxle's values by using the GDS.

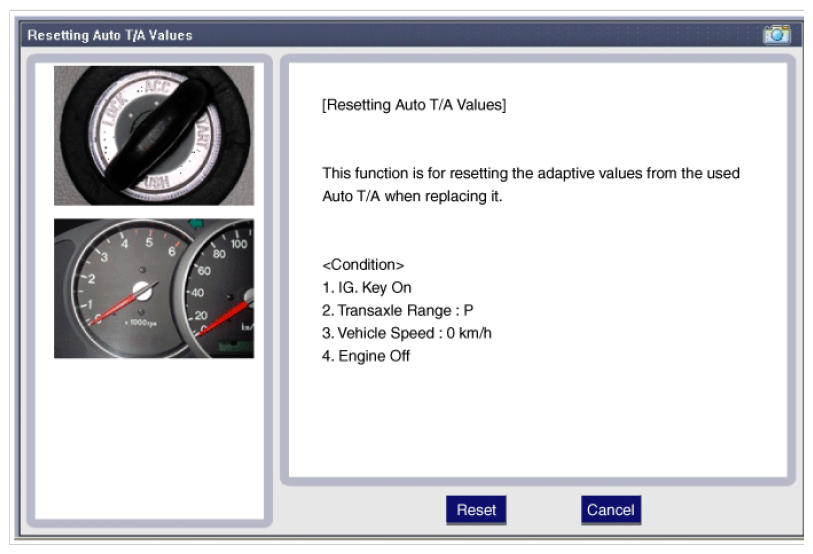

  Fig 1: Scantool Display - Resetting Auto T/A Values Screen
  Courtesy of KIA MOTORS AMERICA, INC.

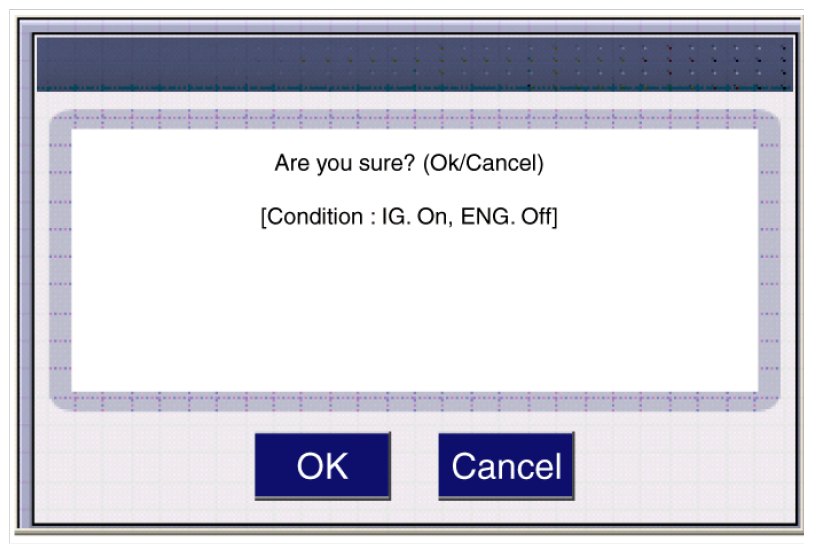

  Fig 2: Scantool Display - Resetting Auto T/A Values Confirmation Screen
  Courtesy of KIA MOTORS AMERICA, INC.

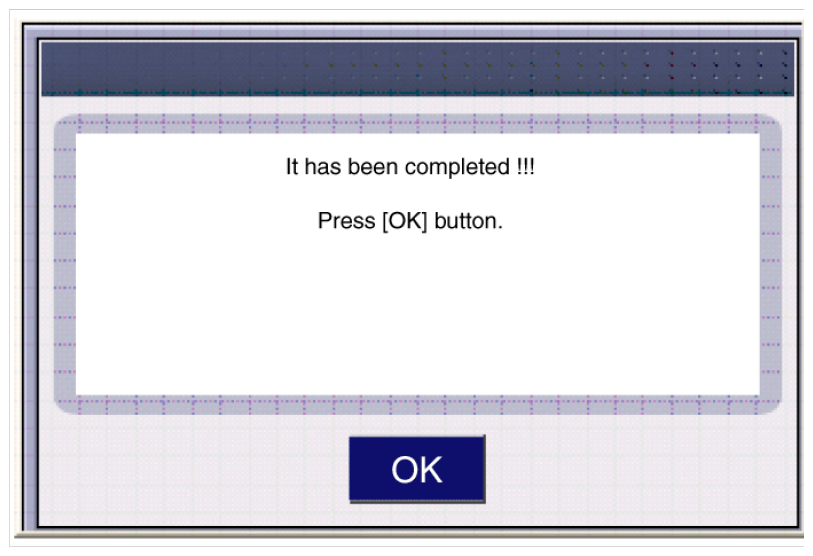

  Fig 3: Scantool Display - Press OK Button Screen
  Courtesy of KIA MOTORS AMERICA, INC.
- Perform TCM learning after replacing the transaxle to prevent slow transaxle response, jerky acceleration and jerky startup. (Refer to "REPAIR PROCEDURES ")
