Automatic Transaxle System - A6LF2
>>
Automatic Transaxle
>>
Components And Components Location
>>
Components Location
Components Location

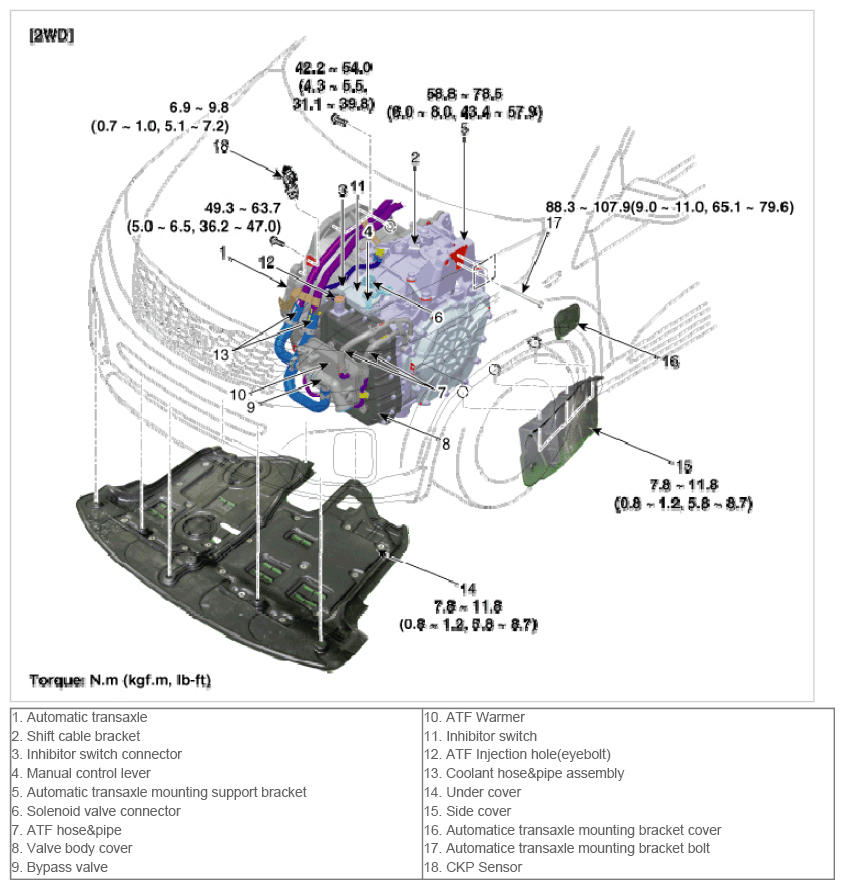

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (2WD)
Courtesy of KIA MOTORS AMERICA, INC.

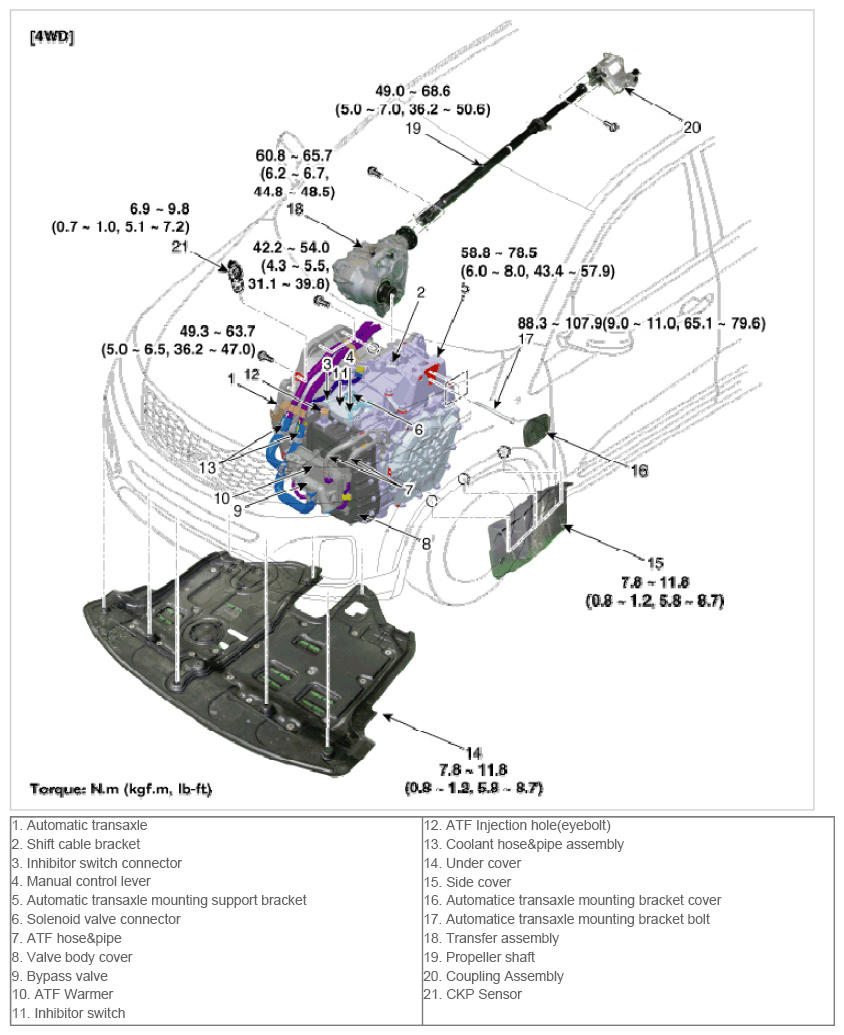

Fig 2: Automatic Transaxle Replacement Components With Torque Specifications (4WD)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
