Repair procedures: Disassembly

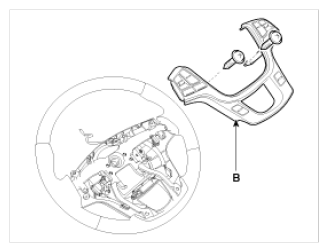

Remove the steering wheel cover (B) after loosening the screw (A-6ea).

Fig 1: Steering Wheel Cover Screws (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Steering Wheel Cover Screws (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

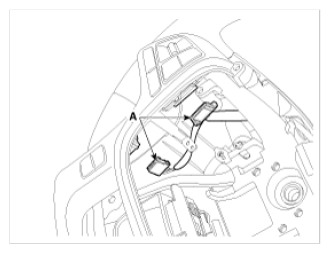

Disconnect the steering wheel remote control switch connector (A).

Fig 3: Steering Wheel Remote Control Switch Connector (Left)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Steering Wheel Remote Control Switch Connector (Right)
Courtesy of KIA MOTORS AMERICA, INC.

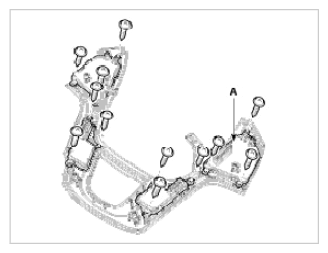

Remove the remote control switch (A).

Fig 5: Remote Control Switch And Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
CAUTION:
- Make sure that the switch connector is plugged in properly.
