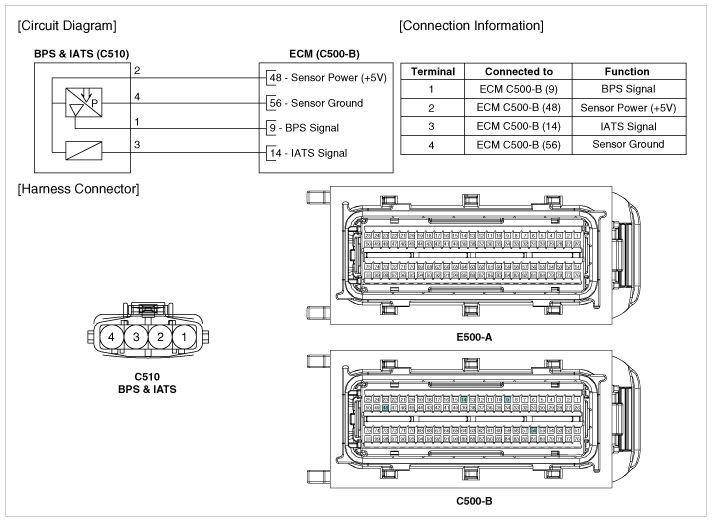

Home >> Kia >> 2015 >> Sorento EX, 4WD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.3L >> Intake Air Temperature Sensor (IATS) >> Schematic Diagrams >> Circuit Diagram
