Home >> Kia >> 2015 >> Sorento EX, 4WD >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> Front Wheel Speed Sensor >> Components And Components Location >> Components

Components And Components Location: Components

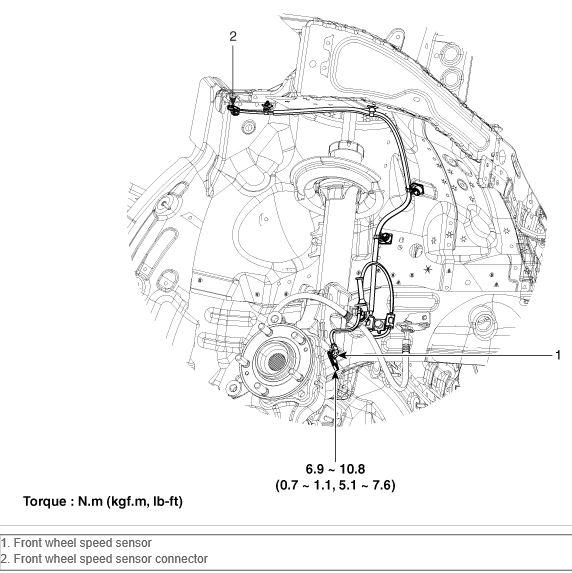

Fig 1: Front Wheel Speed Sensor And Connector With Torque Specifications

G09766285

Courtesy of KIA MOTORS AMERICA, INC.
