Main Power Window Switch Inspection

Disconnect the negative (-) battery terminal.
Remove the front door trim and power window switch.
(Refer to "FRONT DOOR ")

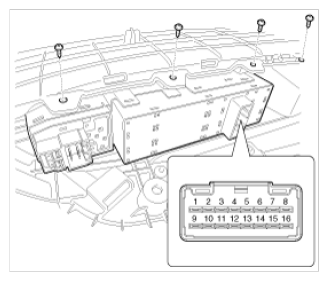

Check for continuity between the terminals in each switch position according to the table. If the continuity condition is not normal, replace the switch.

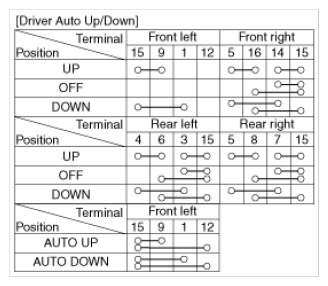

Fig 1: Main Power Window Switch Connector Terminals Continuity Chart (1 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Main Power Window Switch Connector Terminals Continuity Chart (2 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Main Power Window Switch Connector Terminals Continuity Chart (3 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Main Power Window Switch Connector Terminals Continuity Chart (4 Of 5)

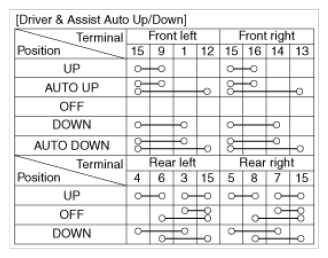

G09767151

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Main Power Window Switch Connector Terminals Continuity Chart (5 Of 5)

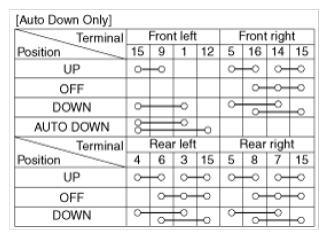

G09767152

Courtesy of KIA MOTORS AMERICA, INC.
