Repair procedures: Removal

Disconnect the negative (-) battery terminal.

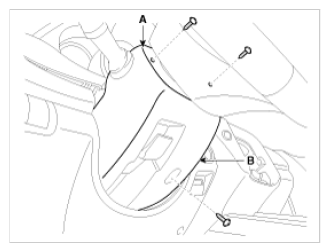

Remove the steering column upper and lower shrouds.
(Proceed to: "STEERING COLUMN AND SHAFT ")

Fig 1: Steering Column Upper And Lower Shrouds
Courtesy of KIA MOTORS AMERICA, INC.
Remove the crash pad lower panel.
(Proceed to: "CRASH PAD ")

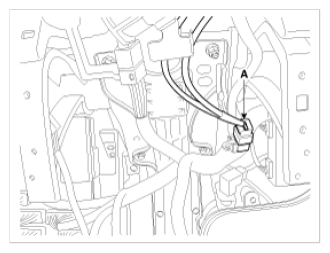

Remove the ignition switch (A) after disconnecting the 6P connector (A).

Fig 2: Ignition Switch And 6P Connector Location
Courtesy of KIA MOTORS AMERICA, INC.

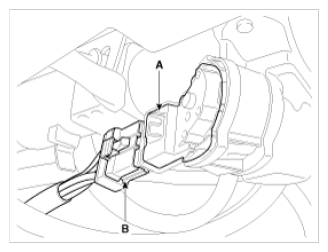

Remove the key warning and immobilizer connector (A).

Fig 3: Immobilizer Connector Location
Courtesy of KIA MOTORS AMERICA, INC.

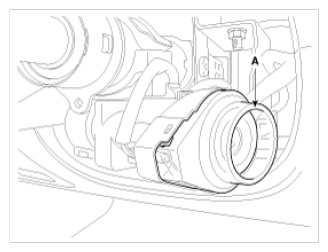

Remove the key illumination lens (A).

Fig 4: Key Illumination Lens
Courtesy of KIA MOTORS AMERICA, INC.

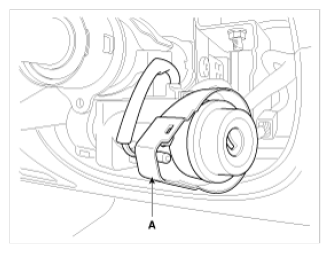

Remove the key illumination bulb and cover (A).

Fig 5: Key Illumination Bulb And Cover
Courtesy of KIA MOTORS AMERICA, INC.

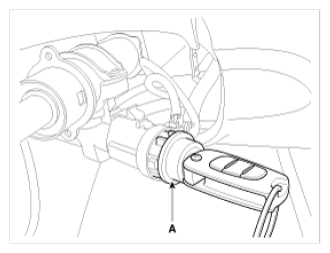

If it is necessary to remove the key lock cylinder (A), remove the key lock cylinder with key ACC.
