Interior 2 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console rear cover (A).

    (Refer to "CONSOLE ")

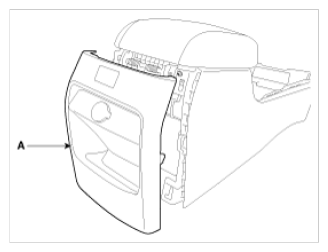

    Fig 1: Floor Console Rear Cover
    G09766901Courtesy of KIA MOTORS AMERICA, INC.
  3. After loosening the antenna nuts (2EA) and connector, remove the interior 2 antenna (A).

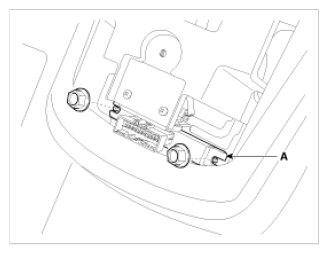

    Fig 2: Interior 2 Antenna
    G09766902Courtesy of KIA MOTORS AMERICA, INC.
