Interior 1 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the console assembly (A).

    (Refer to "CONSOLE ")

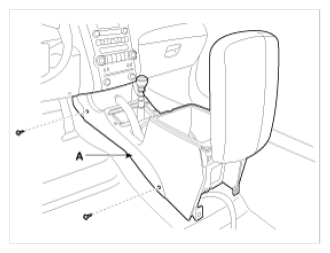

    Fig 1: Console Assembly
    G09766899Courtesy of KIA MOTORS AMERICA, INC.
  3. After loosening the antenna bolts (2EA) and connector, remove the interior 1 antenna (A).

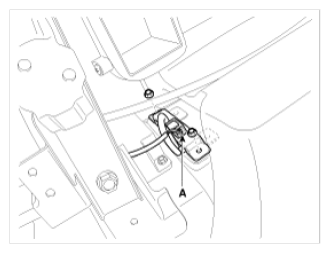

    Fig 2: Interior 1 Antenna
    G09766900Courtesy of KIA MOTORS AMERICA, INC.
