Door Outside Handle

  1. Disconnect the negative (-) battery terminal.
  2. Disconnect the connector after removing the door trim.

    (Refer to "FRONT DOOR ")

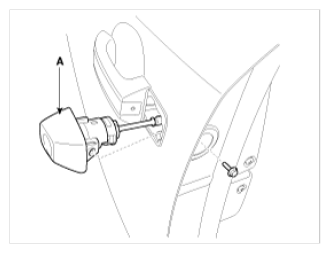

  3. After loosening the mounting bolt, then remove the key holder (A).
    Fig 1: Key Holder
    G09766908Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the outside handle (A) by sliding it rearward.
    Fig 2: Sliding Outside Handle
    G09766909Courtesy of KIA MOTORS AMERICA, INC.
