Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left wheel guide.

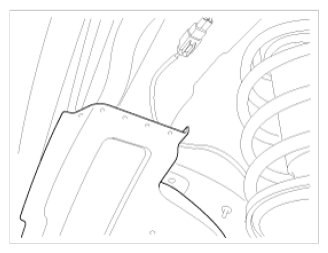

    Fig 1: Front Left Wheel Guide
    G09766906Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the connectors, then remove the buzzer (A).
    Fig 2: Buzzer
    G09766907Courtesy of KIA MOTORS AMERICA, INC.
