Block Diagram

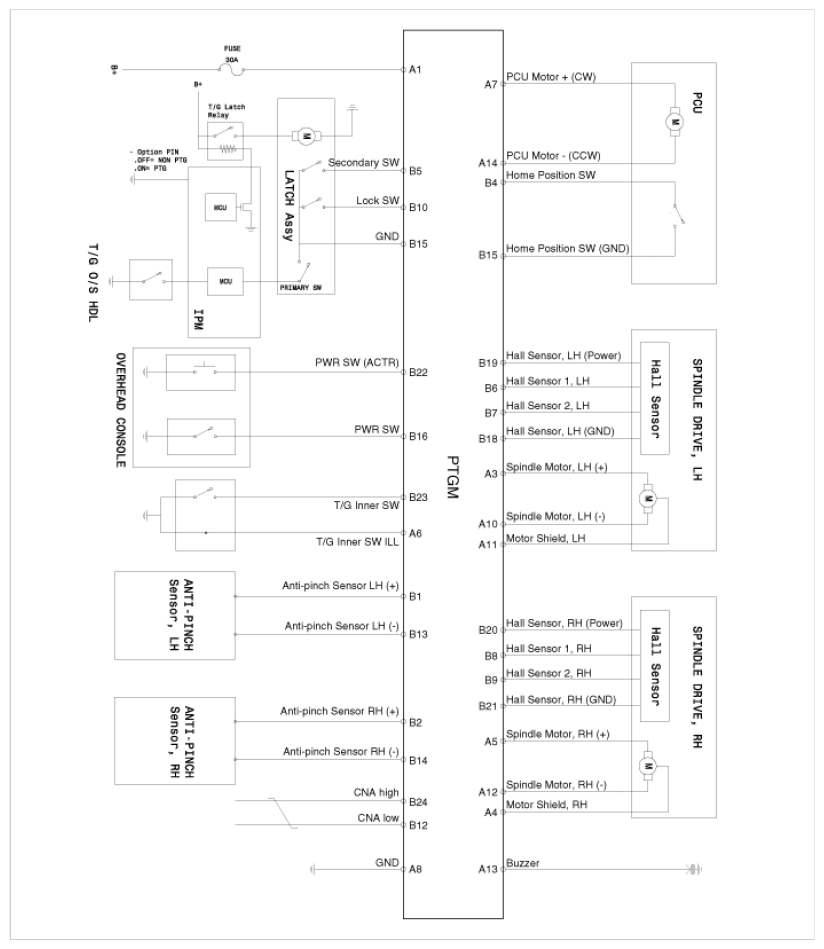

Fig 1: Block Diagram Of Body Electrical System

G09767200

Courtesy of KIA MOTORS AMERICA, INC.
