Repair Procedures: Removal

Disconnect the negative (-) battery terminal.

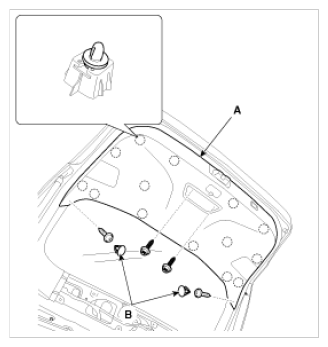

After loosening the mounting screws, then remove the tailgate trim (A).
(Refer to the "TAILGATE TRIM REPLACEMENT ")

Fig 1: Tailgate Trim And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the tail gate latch assembly (A) after loosening the mounting bolts.

Fig 2: Tailgate Latch Assembly
Courtesy of KIA MOTORS AMERICA, INC.

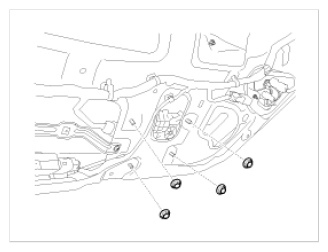

Loosen the PCU (Power Closing Unit) mounting nuts.

Fig 3: PCU (Power Closing Unit) Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.

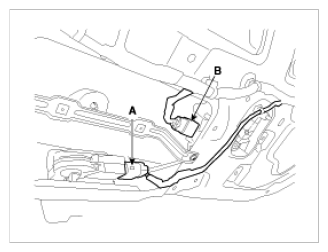

Disconnect the power tailgate latch connector (A) and PCU connector (B).

Fig 4: Power Tailgate Latch Connector And PCU Connector
Courtesy of KIA MOTORS AMERICA, INC.

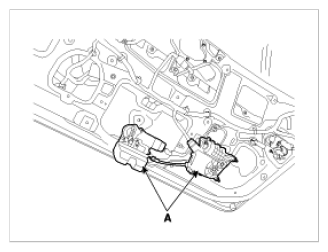

Remove the power tailgate latch & PCU assembly (A).

Fig 5: PCU Assembly
Courtesy of KIA MOTORS AMERICA, INC.
