Home >> Kia >> 2015 >> Sorento EX, 4WD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Tailgate Module >> Description And Operation >> Operation >> Calibration Mode

Calibration Mode

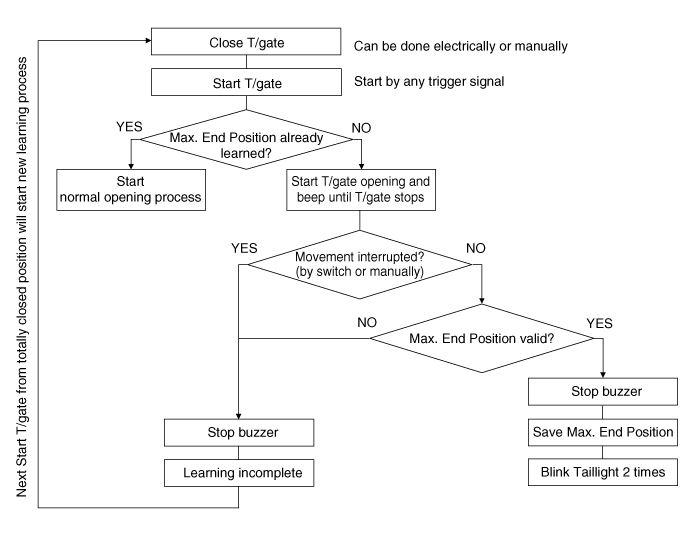

Fig 1: Calibration Mode Flow Chart

G09767197

Courtesy of KIA MOTORS AMERICA, INC.
