Components And Components Location: Components

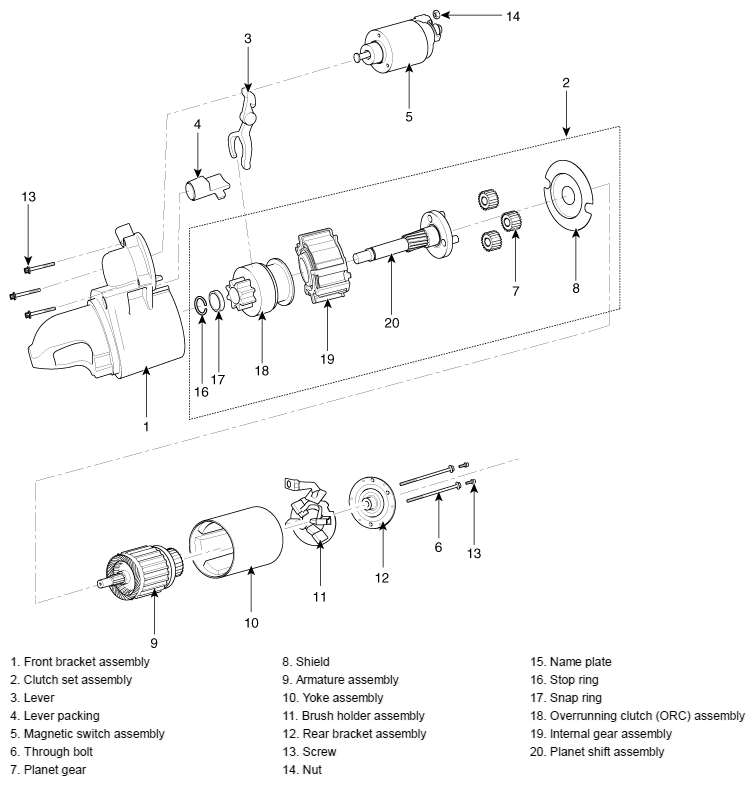

Fig 1: Exploded View Of Starter

G10648725

Courtesy of KIA MOTORS AMERICA, INC.
