Wiring Harness Ground State Inspection: Notes

NOTE:

• Ground state
• Mounting bolt tightening state (Chassis)
• Mounting bolt tightening state (Engine)
• Check the status of ground fault by chassis paint

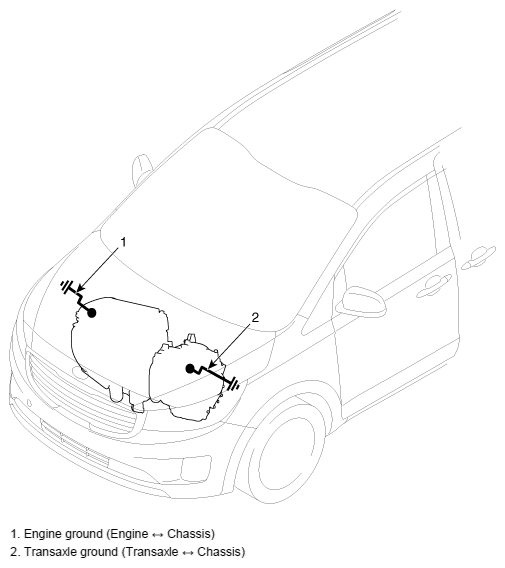

Fig 1: Engine Ground (Engine-Chassis) And Transaxle Ground (Transaxle-Chassis)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Check the ground point.
(Refer to Battery Sensor  ETM Harness Layout - "Ground Point")
