Connector Pin Information

No.	Connector	A Connector B
1	Rear left speaker (+)	CAN High
2	Front left speaker (+)	-
3	Front right speaker (+)	-
4	Rear right speaker (+)	-
5	-	-
6	-	USB D (+)
7	-	USB VDD
8	Illumination (+)	AUX R IN
9	Detent	AUX GND
10	Rear left speaker (-)	Mic (+)
11	Front left speaker (-)	ACC
12	Front right speaker (-)	B+
13	Rear right speaker (-)	CAN Low
14	-	-
15	-	-
16	-	Speed
17	Illumination (-)	-
18	Remote antenna	USB D (-)
19		USB GND
20		AUX DETECT
21		AUX L IN
22		Mic (-)
23		-
24		Power GND

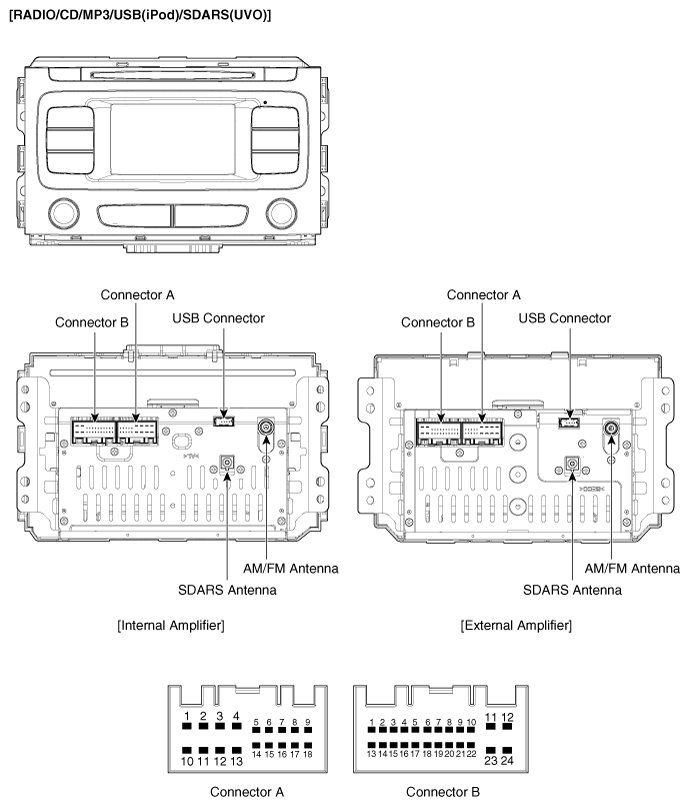

Fig 1: Audio Unit Related Components (Radio/CD/MP3/USB (Ipod)/SDARS - UVO)

G10650820

Courtesy of KIA MOTORS AMERICA, INC.

No.	Connector A		Connector B
No.	Internal Amplifier	External Amplifier	Internal Amplifier	External Amplifier
1	Rear left speaker (+)	-	CAN high	CAN high
2	Front left speaker (+)	-	-	-
3	Front right speaker (+)	-	-	-
4	Rear right speaker (+)	-	-	-
5	-	SPDIF GND	-	-
6	-	SPDIF (-)	Camera Vin	Camera Vin
7	-	-	Camera battery (+)	Camera battery (+)
8	Illumination (+)	Illumination (+)	AUX right in	AUX right in
9	-	-	AUX GND	AUX GND
10	Rear left speaker (-)	-	MIC (+)	MIC (+)
11	Front left speaker (-)	-	ACC	ACC
12	Front right speaker (-)	-	Battery (+)	Battery (+)
13	Rear right speaker (-)	-	CAN low	CAN low
14	-	-	-	-
15	-	SPDIF (+)	-	-
16	Door unlock	Door unlock	Speed	Speed
17	Illumination (-)	Illumination (-)	-	-
18	Remote antenna	Remote antenna	Camera GND	Camera GND
19			Reverse position	Reverse position
20			AUX Detect	AUX Detect
21			AUX Left IN	AUX Left IN
22			MIC (-)	MIC (-)
23			Camera PGND	Camera PGND
24			Power GND	Power GND

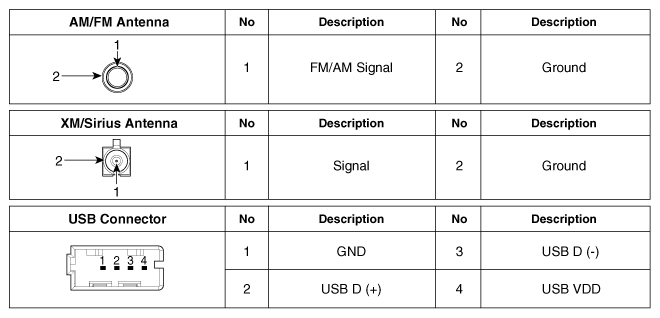

Fig 1: Audio Unit Description Chart

G10650821

Courtesy of KIA MOTORS AMERICA, INC.
