Components And Components Location: Components

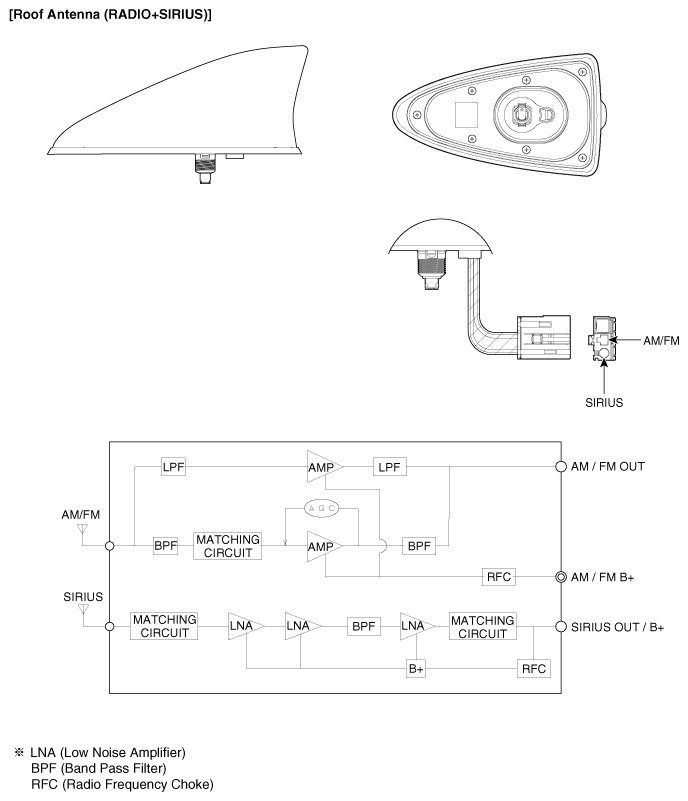

Fig 1: Antenna Related Components - Roof Antenna (Radio + Sirius)
G10650836Courtesy of KIA MOTORS AMERICA, INC.

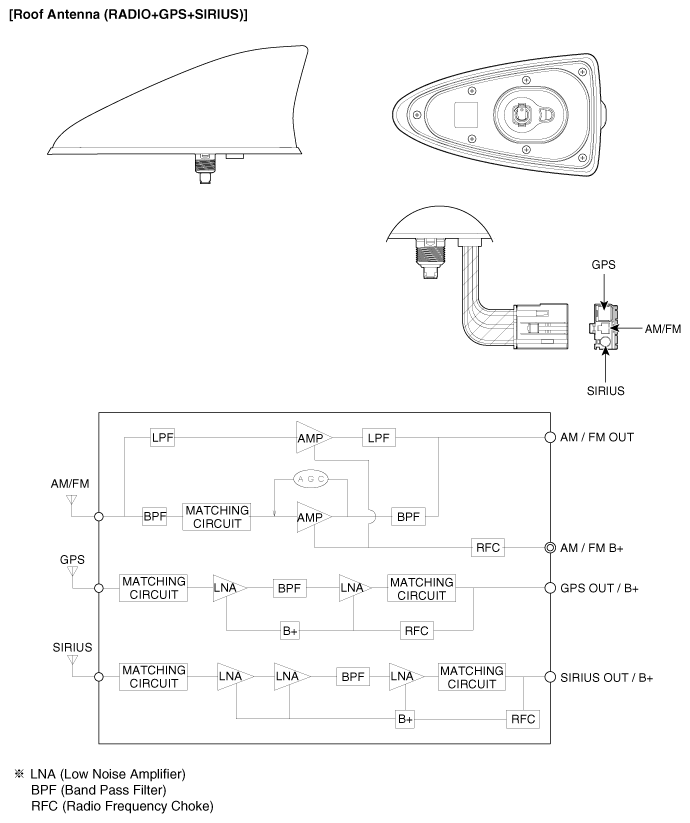

Fig 2: Antenna Related Components - Roof Antenna (Radio + GPS + Sirius)
G10650837Courtesy of KIA MOTORS AMERICA, INC.
