Components and Components Location: Components

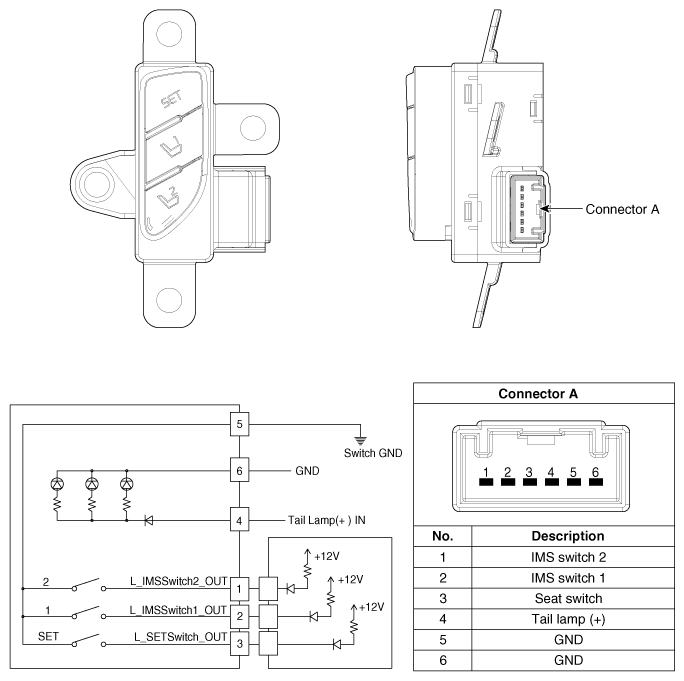

Fig 1: IMS Control Switch Connector Terminals

G10651216

Courtesy of KIA MOTORS AMERICA, INC.
