Home >> Kia >> 2015 >> Sedona EX >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Axle Assembly >> Front Hub/Knuckle/Tone Wheel >> Components And Components Location >> Components

Components And Components Location: Components

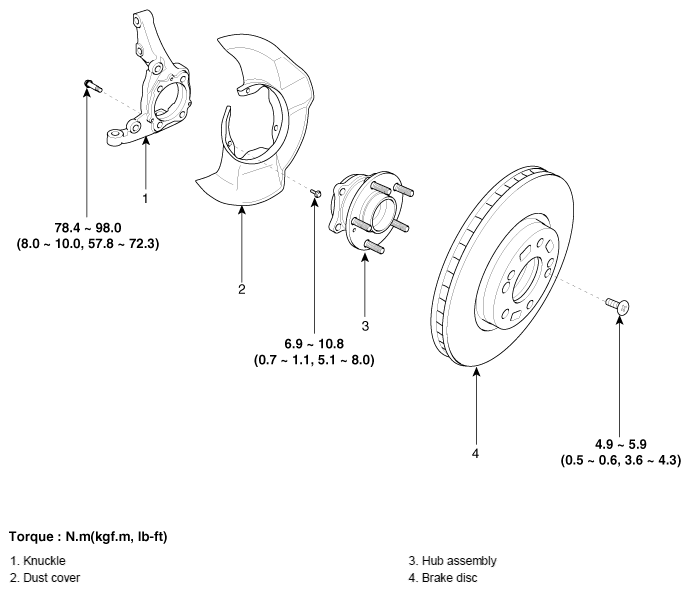

Fig 1: Exploded View Of Front Hub/Knuckle/Tone Wheel With Torque Specifications

G10649242

Courtesy of KIA MOTORS AMERICA, INC.
