Components And Components Location: Components

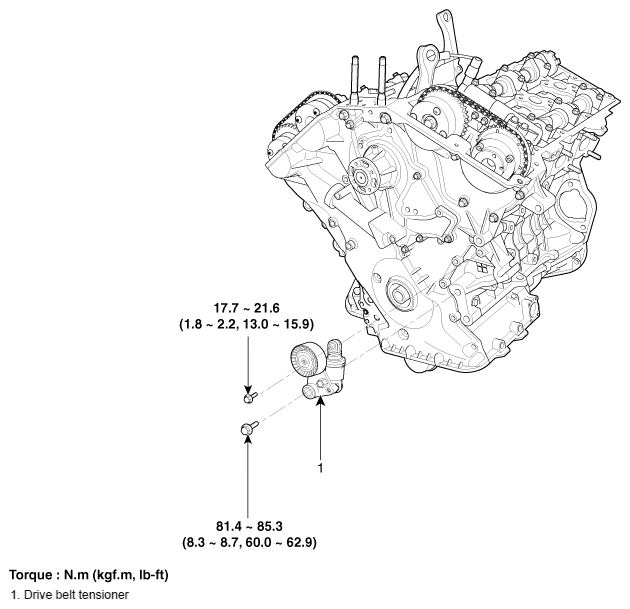

Fig 1: Drive Belt Tensioner Related Component With Torque Specification

G10648543

Courtesy of KIA MOTORS AMERICA, INC.
