Home >> Kia >> 2015 >> Sedona EX >> Repair and Diagnosis >> Electrical >> Gauges >> Cluster Module Diagnosis >> DTC B1000-51: Cluster Coding Not Programmed >> Specification >> Signal Waveform & Data

Signal Waveform & Data

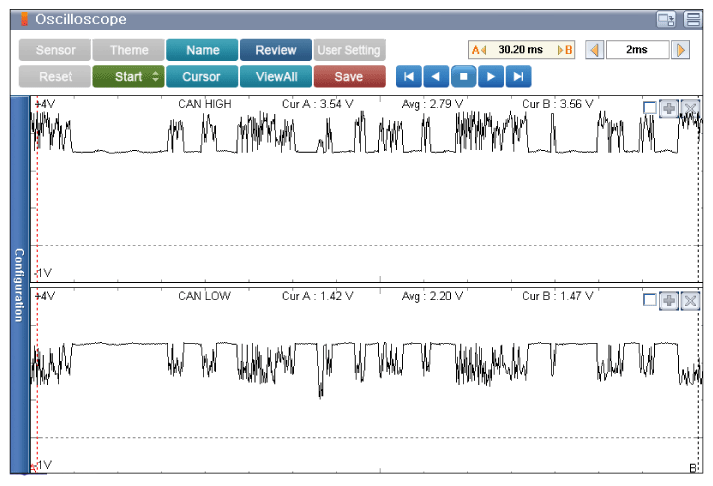

Fig 1: Display - C CAN Low And High Signal Waveform Screen
G10653714Courtesy of KIA MOTORS AMERICA, INC.

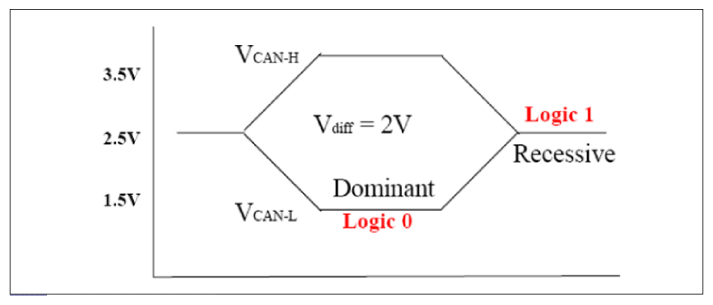

Fig 2: Display - C CAN Bus Voltage Level (High Speed CAN) Screen
G10653715Courtesy of KIA MOTORS AMERICA, INC.
