Components And Components Location: Components

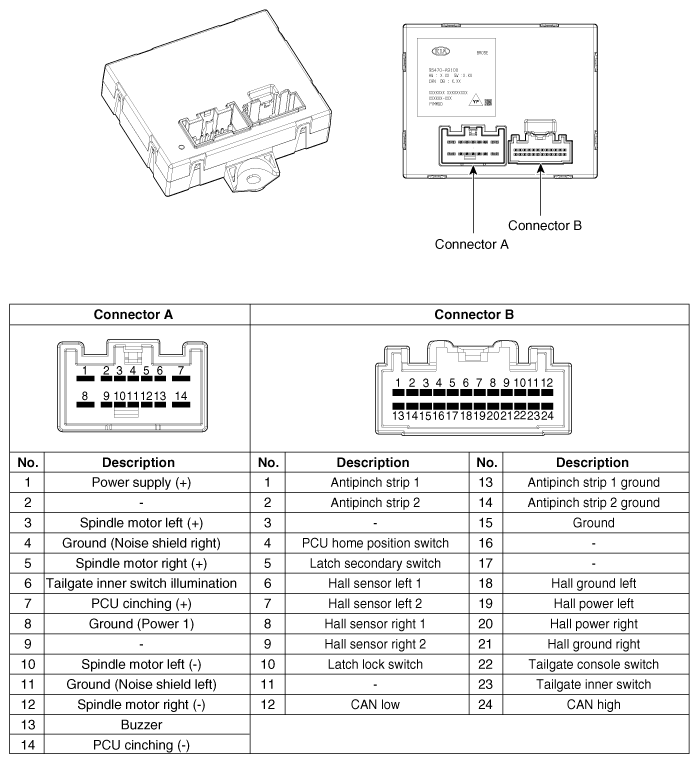

Fig 1: Smart Tailgate Unit Connectors

G10651666

Courtesy of KIA MOTORS AMERICA, INC.
