Repair Procedures: Removal

Release the residual pressure in fuel line (Refer to the "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").
Remove the rear seat [LH] (Refer to REAR SEAT "Seat" in BD group).
Remove the fuel pump service cover (A).

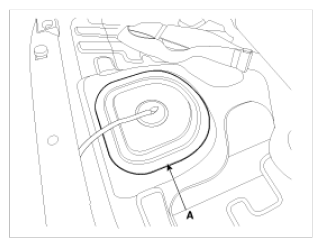

Fig 1: Identifying Fuel Pump Service Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel pump connector (A).
Disconnect the fuel feed tube quick connector (B).
Disconnect the fuel tank pressure sensor connector (C).
Disconnect the vapor tube (D).

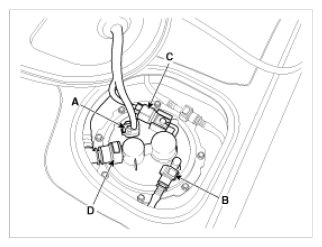

Fig 2: Identifying Vapor Tube, Fuel Tank Pressure Sensor Connector, Quick Connector And Fuel Pump Connector
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle and support the fuel tank with a jack.
Remove the center muffler assembly (Refer to "INTAKE AND EXHAUST SYSTEM " in EM group).
Disconnect the fuel filler hose (A) and the vapor hose (B).

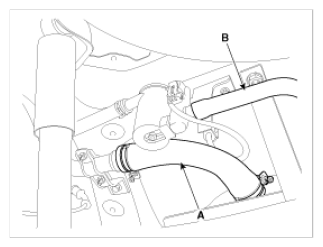

Fig 3: Identifying Fuel Filler Hose And Vapor Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove the parking brake line installation bolt (A).

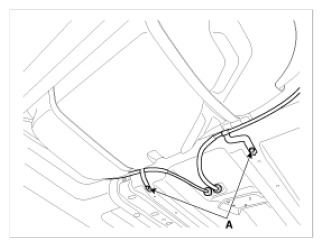

Fig 4: Identifying Parking Brake Line Installation Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel tank from the vehicle after removing the fuel tank band (A).

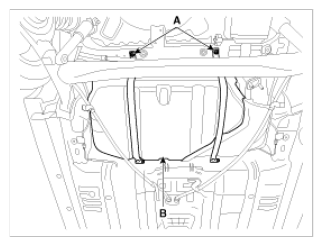

Fig 5: Identifying Fuel Tank And Band
