Repair Procedures: Removal

Release the residual pressure in fuel line (Refer to the "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").
Remove the rear seat [LH] (Refer to REAR SEAT "Seat" in BD group).
Remove the fuel pump service cover (A).

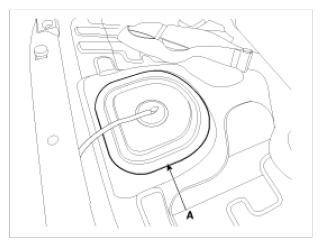

Fig 1: Identifying Fuel Pump Service Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel pump connector (A).
Disconnect the fuel feed tube quick connector (B).
Disconnect the fuel tank pressure sensor connector (C).
Disconnect the vapor tube quick-connector (D).
Remove the plate cover (E) after removing the installation bolts, and then remove the fuel pump from the fuel tank.

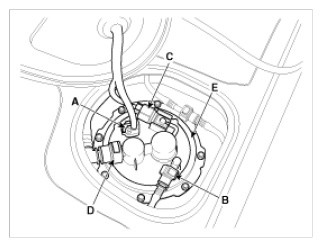

Fig 2: Identifying Fuel Pump Connector, Fuel Feed Tube Quick Connector, Pressure Sensor Connector, Vapor Tube Quick-Connector And Plate Cover
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Identifying Fuel Pump Assembly
Courtesy of KIA MOTORS AMERICA, INC.
