Repair Procedures: Removal

  1. Remove the front wheel and tire.

    Tightening torque:

    88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

  2. Remove the front wheel speed sensor mounting bolt (A).

    Tightening torque:

    7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

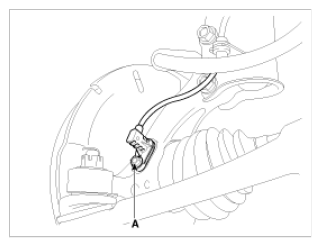

    Fig 1: Identifying Front Wheel Speed Sensor Mounting Bolt
    G08322323Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the front wheel guard.
  4. Remove the front wheel speed sensor cable mounting bolt.
  5. Disconnect the front wheel speed sensor connector, and then remove the front wheel speed sensor.
  6. Installation is the reverse of removal.
