Repair Procedures: Inspection

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to the "INTERIOR (CRASH PAD) ")

  3. Remove the crash pad side switch assembly (A).

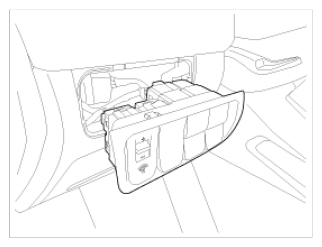

    Fig 1: Identifying Crash Pad Side Switch Assembly
    G08322334Courtesy of KIA MOTORS AMERICA, INC.
  4. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
    Fig 2: ESC Off Switch Terminals Continuity Reference Chart
    G08322335Courtesy of KIA MOTORS AMERICA, INC.
