Interior 1 Antenna

NOTE:
  • Take care not to scratch the crash pad and related parts
  1. Disconnect the negative(-) battery terminal.
  2. Remove the heater & A/C controller.

    (Refer to REPAIR PROCEDURES .

  3. Remove the interior 1 antenna (A) after disconnecting the connector and loosening the nuts (2EA).

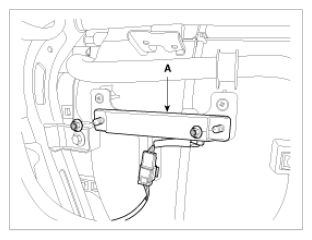

    Fig 1: Identifying Interior 1 Antenna With Nuts
    G08322897Courtesy of KIA MOTORS AMERICA, INC.
